단위 unit : mm
|
Model No.
|
Hole size
|
Width
|
O.D
|
I.D
|
Length
|
Length of
connection
|
Thickness
|
|
16
|
6.3
|
10
|
13
|
6
|
30
|
13
|
3
|
|
25
|
6.3
|
13
|
14
|
7
|
35
|
14
|
3
|
|
35
|
8.5
|
17
|
16.5
|
8.1
|
40
|
15
|
3.5
|
|
50
|
8.5
|
18
|
18
|
9.5
|
50
|
21
|
3.5
|
|
75
|
10.5
|
21
|
20
|
11.3
|
60
|
26
|
4
|
|
95
|
10.5
|
25
|
23
|
13
|
65
|
26
|
4
|
|
120
|
12.5
|
28
|
25
|
14.5
|
70
|
30
|
4.5
|
|
150
|
12.5
|
32
|
27
|
16
|
85
|
39
|
4.5
|
|
185
|
12.5
|
35
|
30
|
17.5
|
90
|
43
|
5
|
|
240
|
14.5
|
40
|
33
|
20
|
105
|
45
|
5.5
|
|
300
|
14.5
|
44
|
37
|
22
|
110
|
54
|
6
|
|
400
|
14.5
|
48
|
43
|
26
|
120
|
54
|
7
|
단위 unit : mm
|
Model No.
|
Hole size
|
Width
|
O.D
|
I.D
|
Length
|
Length of
connection
|
Thickness
|
|
70
|
10.5
|
21
|
20
|
11.3
|
125
|
33
|
4
|
|
95
|
10.5
|
25
|
23
|
13
|
130
|
37
|
4
|
|
120
|
12.5
|
28
|
25
|
14.5
|
135
|
40
|
4.5
|
|
150
|
12.5
|
32
|
27
|
16
|
135
|
40
|
4.5
|
|
185
|
12.5
|
35
|
30
|
17.5
|
140
|
45
|
5
|
|
240
|
14.5
|
40
|
33
|
20
|
145
|
53
|
5.5
|
|
300
|
14.5
|
44
|
37
|
22
|
150
|
60
|
6
|
|
400
|
14.5
|
48
|
43
|
26
|
160
|
65
|
7
|
|

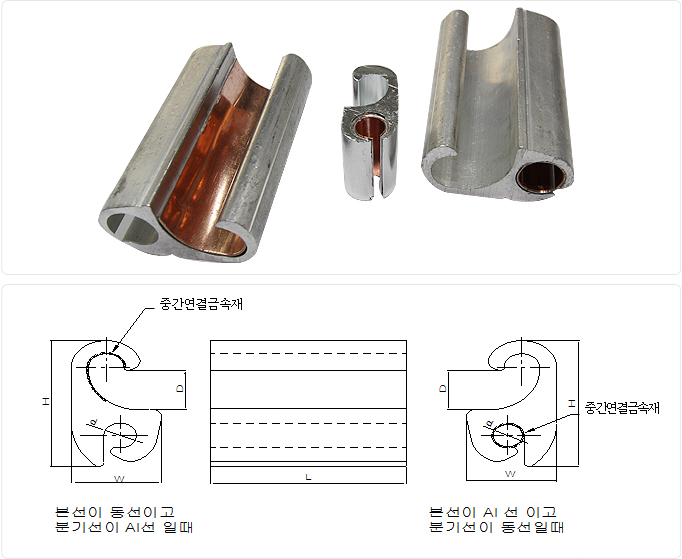

기호
|
본선
(ACSR)
|
분기선(Cu)
|
H
|
L
|
W
|
D
|
d
|
공구
|
다이스
|
압축
회수
|
|
OW
|
CV
|
|
A1-1
|
32
|
22
|
25
|
43
|
35
|
22
|
8.8
|
6.9
|
Y-35와 동등
이상
|
U-D3
|
1
|
|
A1-2
|
32
|
38
|
35
|
43
|
35
|
22
|
8.8
|
9.0
|
U-D3
|
1
|
|
A1-3
|
32
|
60
|
70
|
43
|
35
|
22
|
8.8
|
11.0
|
U-D3
|
1
|
|
A1-4
|
32
|
100
|
120
|
50
|
35
|
31
|
8.8
|
14.0
|
U-N
|
1
|
|
A1-5
|
32
|
150
|
185
|
54
|
66
|
31
|
8.8
|
17.1
|
U-N
|
1
|
|
A2-1
|
58
|
22
|
25
|
43
|
35
|
22
|
11.5
|
6.9
|
U-D3
|
1
|
|
A2-2
|
58
|
38
|
35
|
43
|
35
|
22
|
11.5
|
9.0
|
U-D3
|
1
|
|
A2-3
|
58
|
60
|
70
|
50
|
35
|
31
|
11.5
|
11.0
|
U-N
|
1
|
|
A2-4
|
58
|
100
|
120
|
54
|
35
|
31
|
11.5
|
14.0
|
U-N
|
1
|
|
A2-5
|
58
|
150
|
185
|
58
|
66
|
31
|
11.5
|
17.1
|
U-N
|
2
|
|
A3-1
|
95
|
22
|
25
|
50
|
66
|
31
|
14.6
|
6.9
|
U-N
|
2
|
|
A3-2
|
95
|
38
|
35
|
50
|
66
|
31
|
14.6
|
9.0
|
U-N
|
2
|
|
A3-3
|
95
|
60
|
70
|
54
|
66
|
31
|
14.6
|
11.0
|
U-N
|
2
|
|
A3-4
|
95
|
100
|
120
|
58
|
66
|
31
|
14.6
|
14.0
|
U-N
|
2
|
|
A3-5
|
95
|
150
|
185
|
58
|
66
|
32
|
14.6
|
17.1
|
U-N
|
2
|
|
A4-1
|
160
|
22
|
25
|
54
|
66
|
31
|
20
|
6.9
|
U-N
|
2
|
|
A4-2
|
160
|
38
|
35
|
54
|
66
|
31
|
20
|
9.0
|
U-N
|
2
|
|
A4-3
|
160
|
60
|
70
|
58
|
66
|
31
|
20
|
11.0
|
U-N
|
2
|
|
A4-4
|
160
|
100
|
120
|
58
|
96
|
32
|
20
|
14.0
|
U-N
|
3
|
|
A4-5
|
160
|
150
|
185
|
58
|
96
|
32
|
20
|
17.1
|
U-N
|
3
|
|
|
|
